Custom Billing Integration

Overview#

This document explains how to set up postpaid billing integration with any billing system except WHMCS, such as Blesta, Hostbill, or Ubersmith.

Step 1 - Define your conversion rate between tokens and currencies#

SolusVM offers hourly and monthly billing. Decide how much real money (in desired currencies) one token costs.

We recommend that you prepare a detailed conversion table, for example:

Step 2 - Calculate your hourly and monthly prices#

Prerequisites: Assume that you have already added plans. If not, add plans before proceeding.

You now need to decide how much to charge for your plans. Each plan in SolusVM can have the hourly and the monthly price in tokens:

• Tokens per hour is the price in tokens for using a resource for each hour.

  For example, if you start a server and terminate it after five minutes, the server’s user has to pay the price for one hour.

• Tokens per month is the price in tokens for using a resource for approximately the whole month.

  Months have different lengths but the monthly price is fixed. To achieve this, you set the monthly price by calculating the monthly cap. Let’s see an example.

  We have the hourly price of 7 tokens (equals $0.007/h). The whole 31-day month will then cost the following:

  7 tokens × 24 hours × 31 days = 7 × 744 hours = 5208 tokens (equals $5.21)

  People like round numbers. We can deduct 208 tokens ($0.21) and get the price of 5000 tokens ($5.00). This will be our monthly cap and the monthly price at the same time. SolusVM will choose which price (hourly or monthly) to charge depending on the monthly price.

  For example, a user ran a server for 700 hours, which costs 4900 tokens. It is less than 5000 tokens of the monthly cap so the user will be charged hourly. Next month, the user ran a server for 730 hours, which costs 5110 tokens. It is more than 5000 tokens of the monthly cap so the user will be charged monthly ($5.00).

We recommend that you calculate your hourly and monthly prices before actually setting them in SolusVM. Below you can see an example of how we calculated prices using the conversion table shown in step 1.

Step 3 - Set prices in tokens for plans in SolusVM#

During the previous step, you created the detailed pricing table. You now need to set the hourly and monthly prices (the second and the fifth columns in the pricing table respectively) for plans in SolusVM:

1. Log in to SolusVM.

2. Go to Compute Resources > Plans.



3. You can specify the token values while editing an existing plan or creating a new one:

   • To edit an existing plan, click the icon on the plan’s row.
   • To create a new plan, click Add Plan.

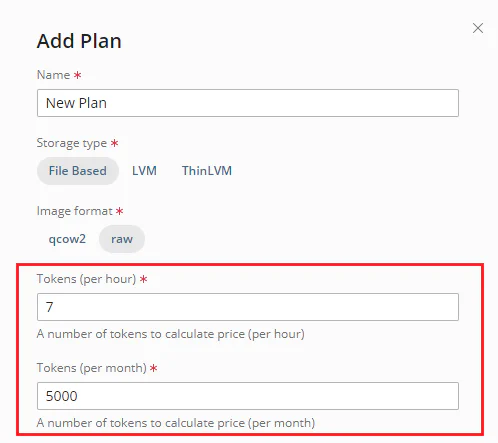

4. Specify the hourly and the monthly price in tokens in Tokens per hour and Tokens per month respectively.

5. If you are creating a plan, also fill in the required fields.

   Note:

   If you set Tokens per month to “0”, only hourly billing will be available. If you set Tokens per hour to “0” but you specify the value for Tokens per month, then hourly billing will not be available. Customers will always be charged the fixed monthly price defined by Tokens per month.

6. Click Save.

Step 4 - Disable registration in the SolusVM user area#

The billing system configured with SolusVM must be the main database for SolusVM users. Only the billing system database must control which users have or do not have the permission to create servers.

However, SolusVM has a part of its interface called user area where users create servers. It is possible to bypass the billing system database by creating users directly in the user area. To prevent this, you need to disable registration in the user area:

1. Log in to SolusVM.

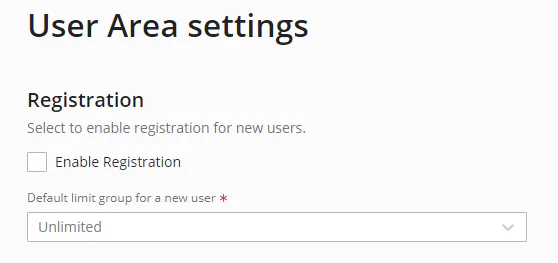

2. Go to Settings > User Area and clear the Enable Registration checkbox.

3. Click Save.



You have disabled registration in the user area. The billing system database is now the main database for SolusVM users.

Step 5 - Create limit groups#

Limit groups help you set limits on the number of servers a specific user can create and can keep in the running state. We recommend that you create limit groups and choose the default limit group for new users. Learn how to do so.

Step 6 - Configure the API endpoint on the billing system side#

You now need to configure the GetTokenPricing endpoint on the billing system side. You can easily configure it in a coding language of your choice.

You need this endpoint so that SolusVM can show prices to customers.

The GetTokenPricing endpoint has the following request and response parameters:

Request parameters#

Response parameters#

When SolusVM needs to display a price to a customer, SolusVM sends an API request with the user ID to the GetTokenPricing endpoint:

curl -X POST "https://www.mybilling.com/solusio/api/"
\ -H "Accept: application/json"
\ -H "Content-Type: application/x-www-form-urlencoded"
\ -d "token=xxxxxxx&action=GetTokenPricing&userid=1"

The billing system then sends an API response with the price-related information, for example:

{
 "base_token_unit_cost": 1.34,
 "user_token_unit_cost": 1.0812,
 "currency": {
         "code": "GBP",
         "display_prefix": "\u00a3",
         "display_suffix": " GBP",
         "thousands_separator": ",",
         "decimals_separator": ".",
         "decimals_per_month": 2,
         "decimals_per_hour": 4
 },
 "discounts": [
         {
                 "name": "Special Client Group Discount",
                 "description": "5% Recurring Discount",
                 "multipler": 0.95
         }
 ],
 "taxes": {
         "compound": true,
         "rates": [
                     {
                             "label": "City Tax",
                             "rate": 6
                     },
                     {
                             "label": "State Tax",
                             "rate": 2
                     }
                 ]
         }
}

user_token_unit_cost in the response is the coefficient that reflects all taxes, discounts, and special offers of a particular user. SolusVM then multiplies user_token_unit_cost by the plan’s price in tokens, gets the real price in the currency (pound sterling in our example), and shows this price to the user.

Step 7 - Enable billing integration in SolusVM#

You have configured the API endpoint on the billing system side. You can now enable the integration in SolusVM.

1. Log in to SolusVM.

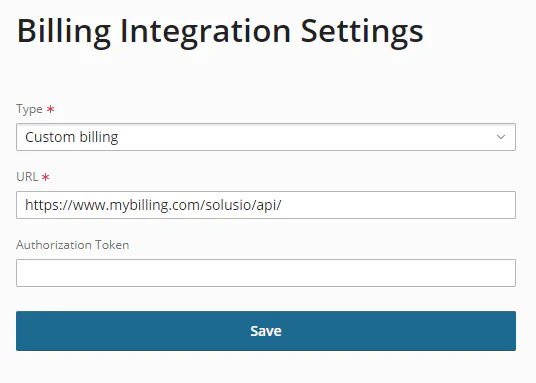

2. Go to Settings > Billing Integration.

3. Under Type, select Custom billing.

4. Specify the URL of the GetTokenPricing endpoint on the billing system side, for example https://www.mybilling.com/solusio/api/

5. (Optional) The billing system may require tokens for authorization. If so, paste your billing system authorization token.

6. Click Save.



Step 8 - Integrate user management with SolusVM on the billing system side#

The billing system must manage users in SolusVM.

To set up this integration, you need to configure user management with SolusVM on the billing system side. When you do so, the billing system will be able to create, edit, delete, lock, and suspend users in SolusVM using the SolusVM API endpoint.

Step 9 - Configure automatic logging in to SolusVM#

The billing system redirects users to the SolusVM user area. To help users access SolusVM without having to log in again, configure automatic logging in. To do so, you need to create an access token for a user first. Then use a login link that contains the token to authorize the user in the integration scripts:

GET https://www.solus-user-ui.com/auth/by_token/{access_token}

Step 10 - Configure invoice generation on the billing system#

As the last step, you need to configure the billing system to send API requests to the /usage SolusVM API endpoint.

At the end of the billing cycle, the billing system generates and sends invoices to users. To calculate charges, the billing system must receive the consumed resources statistics by sending API requests to the /usage endpoint.

You have finished integrating your billing system with SolusVM.
